How the Supply & Demand Zone Detector works:

1. Impulse Detection (Finding Institutional Activity)

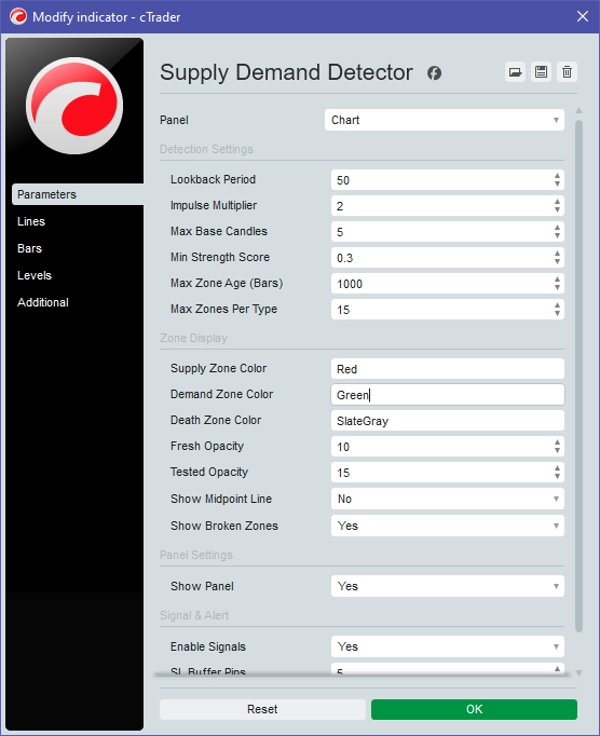

The algorithm continuously calculates the average body size of the last 50 candles (adjustable via Lookback Period). When it detects a candle that is significantly larger than this average (controlled by the Impulse Multiplier, default 1.2x), it flags it as an Impulse Candle.

• Bullish Impulse: Indicates institutional buying. Forms a Demand Zone.
• Bearish Impulse: Indicates institutional selling. Forms a Supply Zone.

2. Base Identification (Drawing the Zone)

Once an impulse is detected, the indicator looks backward to find a cluster of small candles (body size < 50% of the average) immediately preceding the impulse. These are the Base Candles.

• The Top of the zone is the highest high of these base candles.
• The Bottom of the zone is the lowest low of these base candles.

3. Strength Scoring

The indicator calculates a strength score (from 0.00 to 1.00) based on three factors:

1. Impulse Size: How massive the breakout candle is.
2. Post-Move: How far the price traveled immediately after the breakout.
3. Base Density: Fewer base candles mean a faster, more aggressive institutional reaction (higher score).

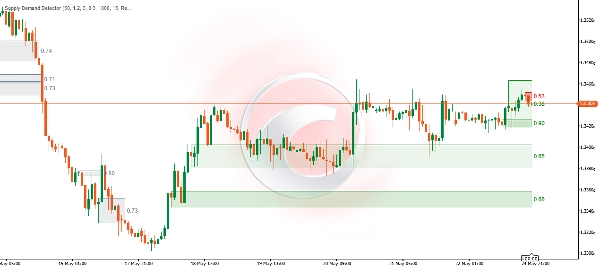

   This score is printed inside the far-right edge of the zone box.

4. Zone Lifecycle & The "Death" Mechanic

As live price moves, the indicator updates the status of the zones in real-time:

• Fresh (Untouched): The zone is newly formed and highly valid. The box automatically stretches to the right, following the current live candle.
• Tested: Price touches the zone but does not break it. Generates a Signal Arrow (Buy/Sell) on the chart.
• Mitigated: Price penetrates more than 50% deep into the zone. The zone is weakening.
• Broken (Death Zone): If a candle completely closes beyond the zone's opposite boundary (e.g., closes below a Demand Zone), the zone is invalidated.

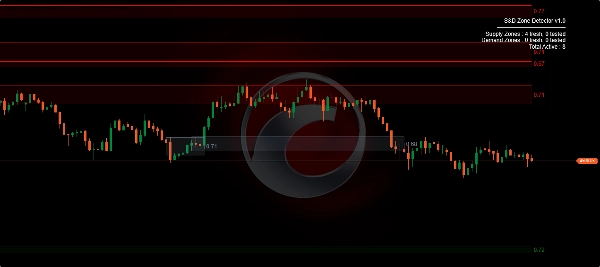

• • The visual reaction: The zone immediately stops stretching to the right (anchored to the DeathTime), and its color turns into a faded Slate Gray (Death Color) to show it is no longer active.

5. Multi-Overlap Filter

To prevent the chart from becoming heavily cluttered, the indicator checks for overlapping zones. If a newly detected zone overlaps more than 70% with an existing older zone of the same type, the new zone is ignored.
