The TECHNICAL ANALYSIS indicator is an advanced technical analysis solution developed for the cAlgo platform, integrating multiple technical indicators focused on identifying robust trends, market momentum, and volume confirmation. It combines the ADX (Average Directional Index) with slope analysis, volume filtering, and real-time multi-indicator technical analysis, offering traders a comprehensive and reliable view for decision-making.

🔍 Main Strategy

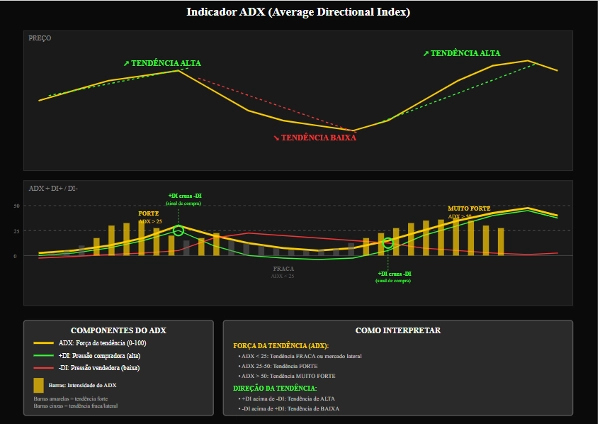

1. Base: ADX + DI (Directional Movement System)

The core of the indicator is the ADX (Average Directional Index), which measures the strength of the trend.

The +DI (Positive Directional Indicator) and -DI (Negative Directional Indicator) components identify the direction of the trend:

+DI > -DI → Uptrend

-DI > +DI → Downtrend

2. Dynamic Momentum Analysis with Slope

The slope of the ADX, +DI, and -DI is calculated using linear regression.

This allows identifying whether the trend is:

Gaining strength (positive slope)

Losing strength (negative slope)

3. Reference Levels

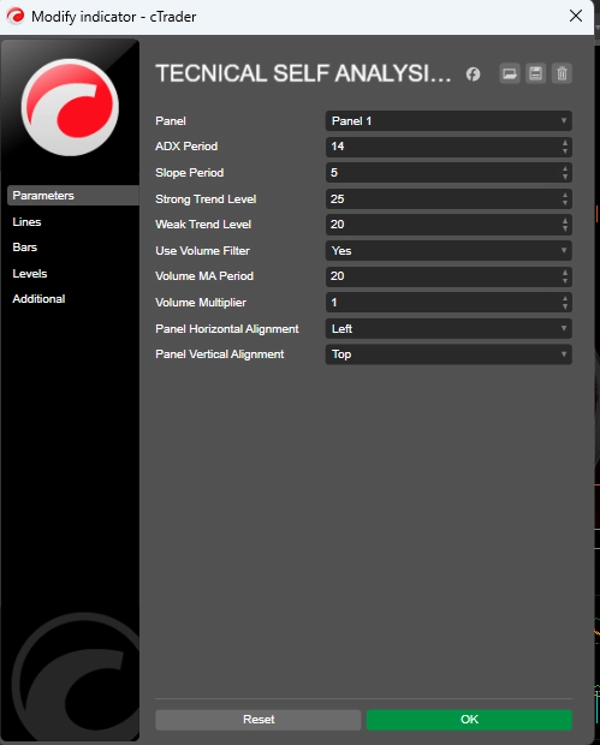

Strong Trend Level: Level above which the trend is considered strong (default: 25)

Weak Trend Level: Minimum level to consider a valid trend (default: 20)

Trends below the weak level are treated as sideways or without a clear direction.

📈 Signal Generation

Buy Conditions

✅ +DI crossing above -DI

✅ ADX above the weak trend level (Weak Trend Level)

✅ Positive ADX and +DI slopes

✅ Volume confirmation (optional)

Sell Conditions

✅ -DI crossing above +DI

✅ ADX above the weak trend level (Weak Trend Level)

✅ Positive ADX and -DI slopes

✅ Volume confirmation (optional)

Strong Signals: When the ADX is above the Strong Trend Level and the slopes are significantly positive, the indicator generates reinforced signals, avoiding consecutive repeated entries. 📊 Volume Filter (Optional)

The indicator may require volume confirmation before generating signals.

The current volume must be greater than or equal to the moving average of the volume × multiplier.

This helps filter out false breakouts and signals in illiquid markets.

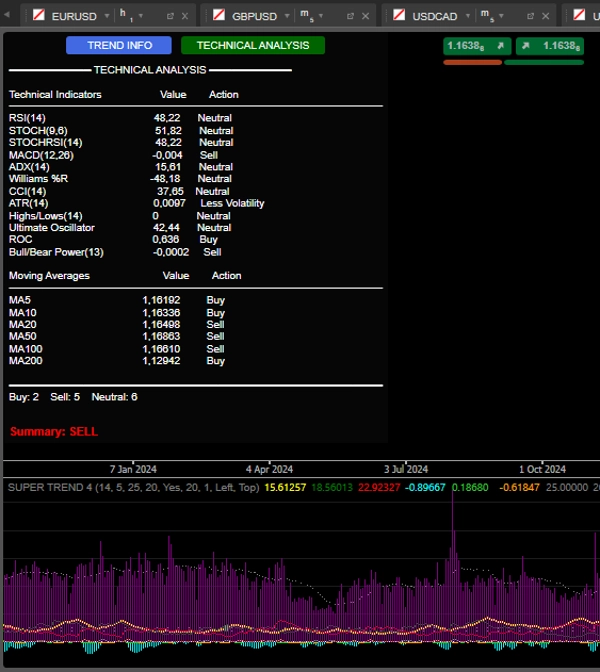

🧠 Advanced Technical Analysis (Interactive Panel)

TECHNICAL ANALYSIS includes two interactive panels on the chart:

1. TREND INFO

Trend Type: Uptrend / Downtrend / Sideways

Trend Strength: Strong / Weak

Momentum: Strengthening / Weakening / Stable

Current ADX, +DI, -DI and Slope values

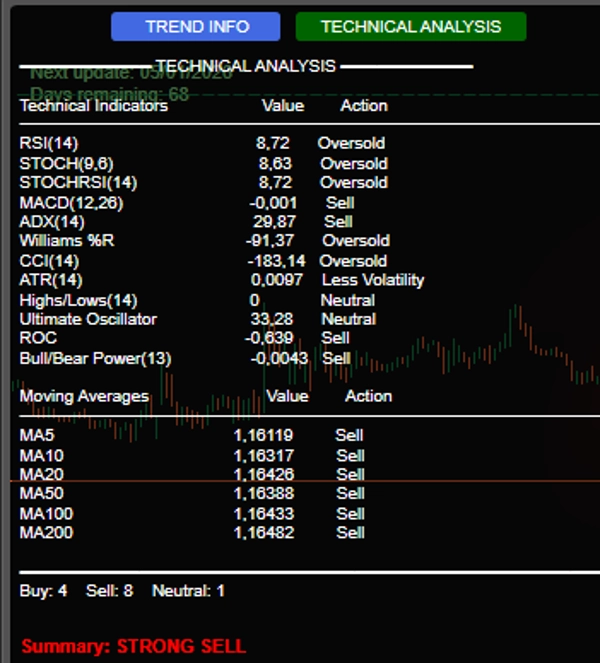

2. TECHNICAL ANALYSIS

Performs a real-time multi-indicator analysis, including:

RSI(14) – Overbought/Oversold

Stochastic(14) – Momentum

MACD(12,26) – Crossings and divergences

Williams %R – Market extremes

CCI(14) – Deviations from the typical price

ROC(12) – Rate of change

Ultimate Oscillator – Strength confirmation

Bull/Bear Power – Buy/Sell pressure

Moving Averages (5,10,20,50,100,200) – Long-term trend

Final Summary: The system counts the buy/sell/neutral signals and issues a clear recommendation:

STRONG BUY (≥7 buy signals)

BUY

SELL

STRONG SELL (≥7 sell signals)

NEUTRAL

🔔 Alerts and Visualization

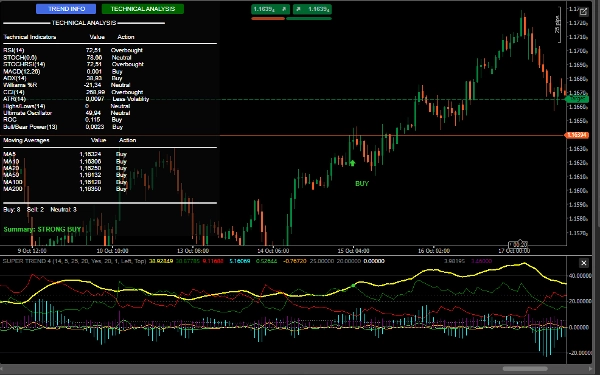

Visual signals on the chart:

Green/red arrows with "BUY"/"SELL" labels

Sound notifications (Windows)

Detailed logs in the console with:

Signal time

ADX, DI and volume values ​​(if enabled)

🛡️ Vantagens Competitivas

✅ Integração de múltiplos indicadores em um único painel

✅ Foco na força e direção da tendência (não apenas preço)

✅ Filtro de volume para maior confiabilidade

✅ Interface interativa e informativa

✅ Sinais claros com alertas visuais e sonoros

This is a test version.
