Açıklama
MA-based SSL channel with multi-timeframe modes, ATR envelope, and bar coloring.
Tracks trend direction by comparing close price against moving averages of High and Low. State flips to bullish when close crosses above MA(High) with sufficient conviction, bearish when it drops below MA(Low) — plotting SSL Up and SSL Down bands accordingly, with a Close MA as additional confluence.
Four calculation modes (None, Interpolated, ScaledPeriod, Trendline), ATR-based envelope for noise filtering, bar coloring, timeframe pattern resolution, and trendline projection deliver a complete SSL framework for traders working across multiple timeframes and analysis styles.
FEATURES
Core Channel Logic
- SSL Up: plots MA(High) in bearish state, MA(Low) in bullish — dynamic resistance/support
- SSL Down: plots the opposing band for clear visual separation
- Close MA output for additional trend confluence overlay
- Supports all cTrader moving average types (SMA, EMA, DEMA, TEMA, WMA, etc.)
ATR Envelope
- Adds an ATR-based buffer around SSL bands to filter noise-driven false flips
- State flips only when close crosses MA(High/Low) by more than ATR × Multiplier
- ATR Upper and ATR Lower bands rendered as separate outputs for visual reference
- In Trendline mode, ATR bands are drawn as trendline objects — smooth, not stair-stepped
- In Interpolated mode, ATR values are linearly interpolated across LTF bars matching SSL behavior
- Configurable ATR period and multiplier
Bar Coloring

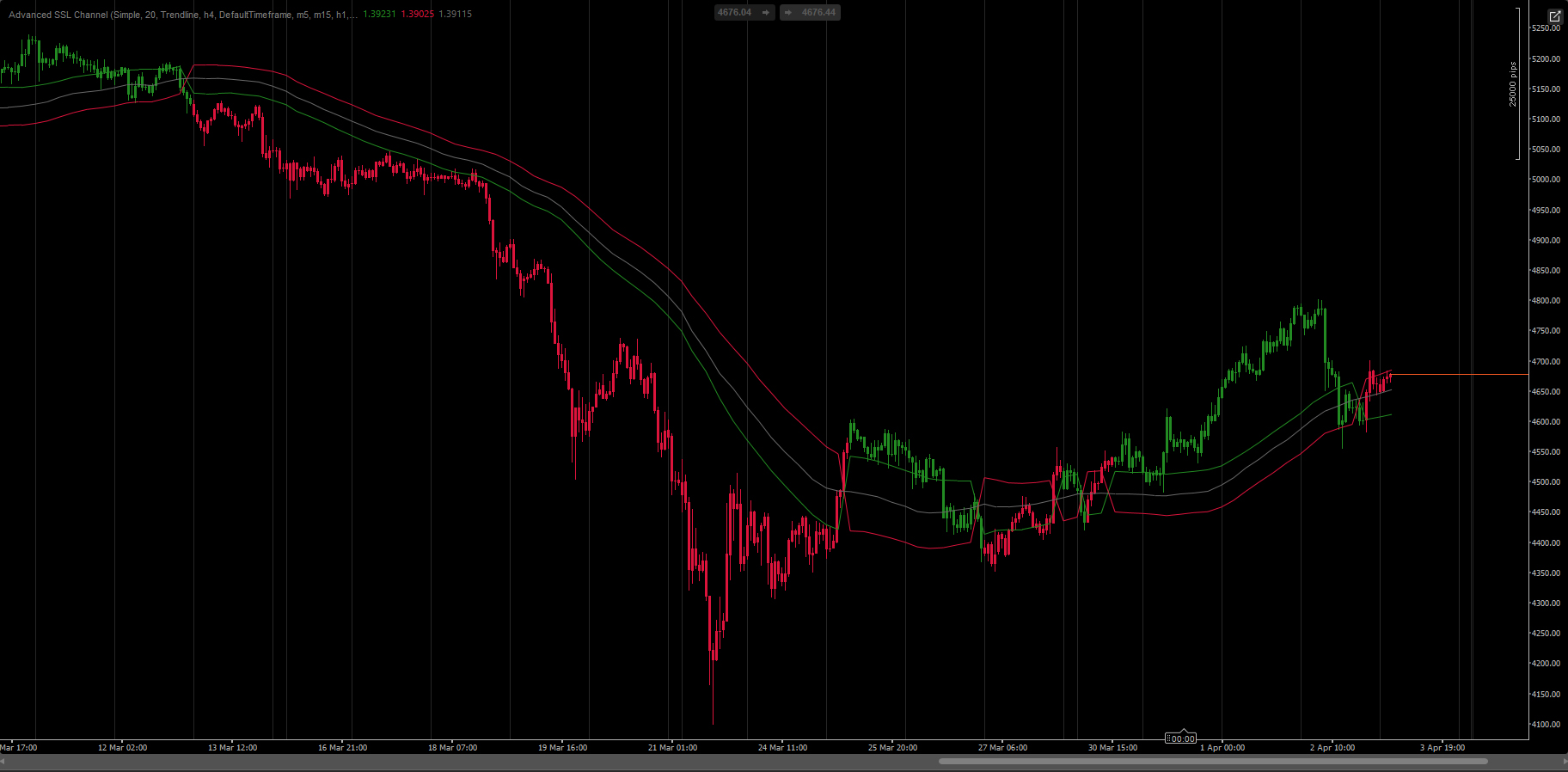

- Recolors chart candles based on current SSL state — green for bullish, red for bearish
- Fully configurable bull and bear colors
- Toggle on/off without affecting SSL band outputs
Multi-Timeframe Modes
- None: standard single-timeframe calculation on the current chart
- Interpolated: HTF values linearly mapped onto LTF bars for a smooth continuous overlay
- ScaledPeriod: scales the period by HTF-to-LTF ratio — no extra data series required
- Trendline: draws chart trendline objects between HTF bar boundaries with full style control
Timeframe Resolution
- DefaultTimeframe: manually select any HTF from the parameter dropdown
- TimeframePattern: auto-selects the nearest higher timeframe from a comma-separated token list (e.g.,
m5, m15, h1, h4, D1, W, M) - Pattern tokens support minutes (m1–m45), hours (h1–h12), days (d1–d3), weekly (W), and monthly (M)
Trendline Mode Extras
- Independent color, thickness, and style control per output line
- Projection segment extends the last HTF segment one bar forward for anticipation
- History limited to 100 segments for clean chart performance

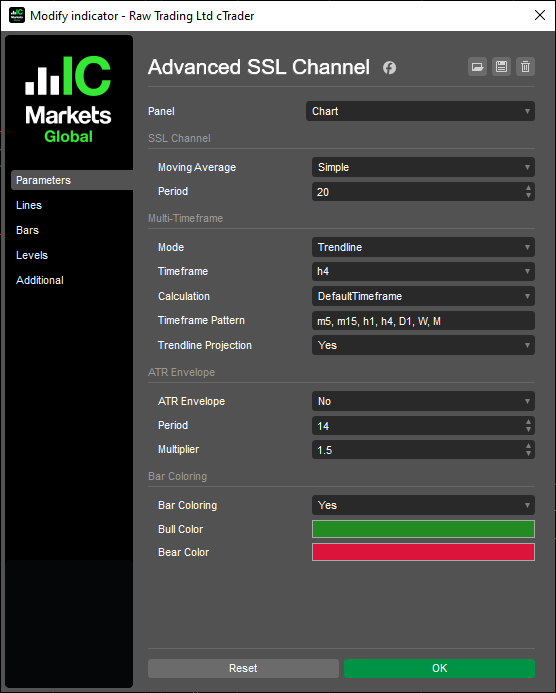

Full Customization
- Configurable MA type and period
- Per-output line style inherited by trendline objects in Trendline mode
- Clean fallback to current timeframe when HTF ≤ chart timeframe
__________________________________________________________________________________________
MORE FREE INDICATORS
Explore a wide range of market analysis tools—from structure and volume to regression, volatility, and custom timeframes.
Source code is available on GitHub repository.
All free to use. But if you feel like sending coffee support, you can route it here.
Support/Resistance
Volume
- Volume Activity Profiler
- Volume Efficiency Analyzer
- Volume Profile Analytics
- Volume Profile - Updated
- Volume Spread Analysis
- VWAP (Volume Weighted Average Price)
Moving Averages
- SSL Channel
- Anchored Moving Average
- Deviation-Scaled Moving Average
- Gann High Low Activator
- Instantaneous Trendline
- Kaufman Adaptive MA with Trend Vision
- Moving Average Channel
- Moving Averages Suite
- Trend Channel Moving Average
Utilities/Custom
Regression-Based
Volatility
Oscillators
__________________________________________________________________________________________
DISCLAIMER
Trading involves risk. This indicator is intended for technical analysis only — always apply proper risk management and trade responsibly.
FEECBACK & IMPROVEMENTS
If you have suggestions, feature requests, or ideas for enhancement, please leave a comment in the Discussion tab. Your feedback helps improve the indicator for everyone.
Özet
Key features include four calculation modes—None, Interpolated, ScaledPeriod, and Trendline—allowing flexible multi-timeframe analysis. An ATR-based envelope filters out noise by requiring price crosses to exceed a configurable ATR multiplier before state changes. The indicator supports all cTrader moving average types (SMA, EMA, DEMA, TEMA, WMA, etc.) and provides bar coloring to visually distinguish bullish and bearish states with customizable colors.
Timeframe resolution options include manual selection or automatic pattern-based higher timeframe detection. In Trendline mode, SSL bands and ATR envelopes are rendered as smooth trendline objects with independent style controls and projection segments for anticipating price movement. The indicator is suitable for traders using various analysis styles and timeframes, offering full customization of moving average types, periods, and visual styles.
